Name: Polcd Small 2.8 inch 240x320 QVGA High Brightness 300nits MCU RGB interface IPS TFT display
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P028B122-IPS
Availability: InStock

Rumah > Produk > Layar TFT Kecil >

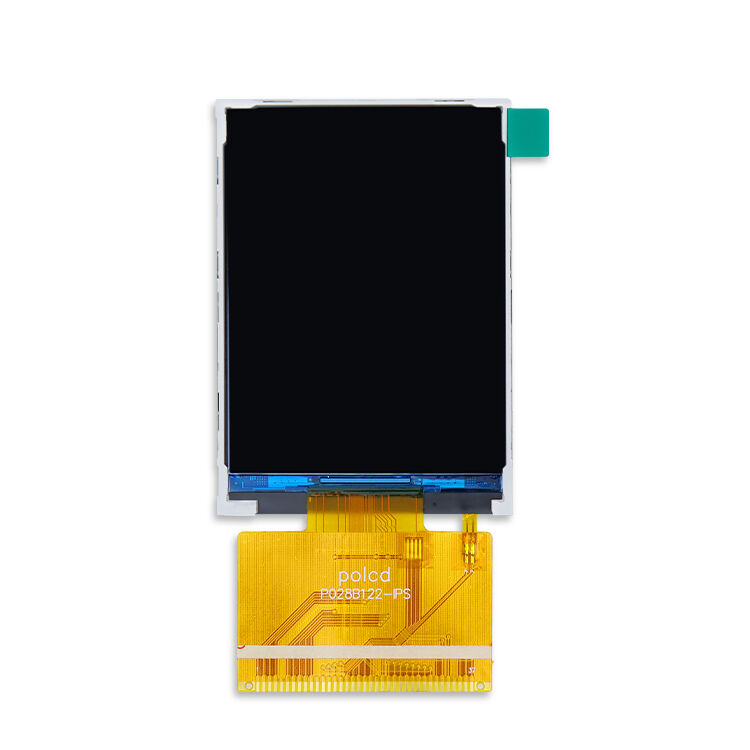

Polcd Small 2.8 inch 240x320 QVGA High Brightness 300nits MCU RGB interface IPS TFT display

2.8 inch QVGA TFT display

high brightness 300nits IPS display

MCU RGB interface TFT screen

Tempat asal:

Shenzhen, Tiongkok

Nama merek:

Polcd

Sertifikasi:

RoHS, ISO9001

Nomor model:

P028B122-IPS

Hubungi kami

Permintaan Penawaran

Rincian Produk

Jumlah piksel:

240RGB(H)x320(V)

Ukuran Layar:

2,8 inci

Area tampilan:

43,20(H)x57,60(V)

Kecerahan (CD/m²):

300

Antarmuka:

MCU 8/16bit

IC pengemudi:

ST7789V

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Harga

Please contact us for latest price

Kemasan rincian

Ukuran FCL: 40*30*20cm / Contoh Kemasan: 20*18*13cm

Waktu pengiriman

1-7 hari kerja

Syarat-syarat pembayaran

T/T, L/C, Kartu Kredit, PayPal, D/A, D/P, Western Union, MoneyGram

Menyediakan kemampuan

40.000 pcs per hari

Produk-produk terkait

video

Polcd Small 2.8 inch 240x320 QVGA High Brightness 300nits MCU RGB interface IPS TFT display

Dapatkan Harga Terbaik

video

Polcd 2,8 inci TFT Display 240x320 Pixel IPS Panel layar 37 Pin MCU ST7789V TFT LCD Modul

Dapatkan Harga Terbaik

video

Polcd OEM 2.8 " tft lcd 240x320 262K Warna ST7789V driver IC MCU 18bit antarmuka Disesuaikan LCD Screen

Dapatkan Harga Terbaik

video

Polcd LCD kecil 2.8 '' 240x320 Industrial IPS Color Screen Full View 2.8 inci Parallel Port TFT LCD

Dapatkan Harga Terbaik

Hubungi kami

00-86-13714394335

anna@polcd.com

86-755-21011746

Hubungi sekarang

Deskripsi Produk

Description:

2.8 inch IPS TFT LCDs are commonly used in various electronic devices, including handheld gaming devices, industrial controllers, portable multimedia players, medical devices, and automotive displays, among others. Their compact size, high-quality display performance, and low power consumption make them a reliable and versatile display solution for various applications. The customizable display driver in some models also allows for greater flexibility and control over the display performance and features, making them suitable for a wide range of applications.

Parameter:

Model	P028B055-IPS
Screen Size	2.8 inch
Number of Pixel	240RGB(H)x320(V)
Display area	43.20(H)x57.60(V)mm
Pixel pitch	0.06(H)x0.18(V)mm
Pins	15 pins

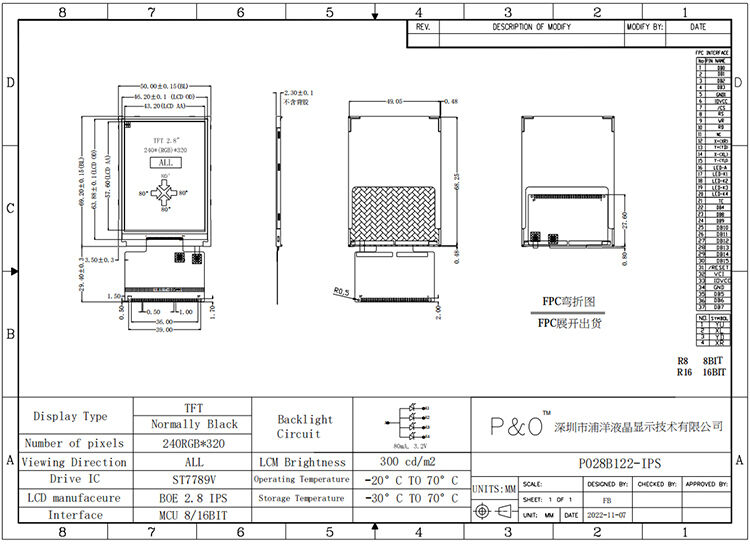

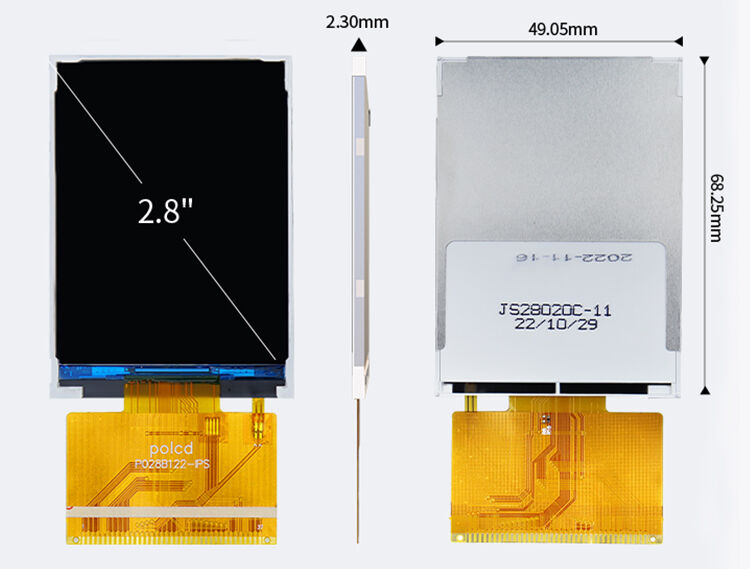

Outline Dimension	50.00x69.20x2.30mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m2)	300 nit
Contrast Ratio	800:1
Interface	4-wire SPI
Back-light	LED Side-light type
Drive IC	ST7789V
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

Polcd Small 2.8 inch 240x320 QVGA High Brightness 300nits MCU RGB interface IPS TFT display 0
