Name: Polcd 2.8'' Custom Qvga 240x320 Color TFT Panel Display 4wire SPI interface IPS LCD Screen
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P028B124-IPS
Availability: InStock

Rumah > Produk > Layar TFT Kecil >

Polcd 2.8'' Custom Qvga 240x320 Color TFT Panel Display 4wire SPI interface IPS LCD Screen

2.8 inch IPS LCD screen

QVGA TFT display panel

SPI interface TFT screen

Tempat asal:

Shenzhen, Cina

Nama merek:

Polcd

Sertifikasi:

RoHS, ISO9001

Nomor model:

P028B124-IPS

Hubungi kami

Permintaan Penawaran

Rincian Produk

Jumlah piksel:

240RGB(H)x320(V)

Ukuran Layar:

2,8 inci

Area tampilan:

43,20(H)x57,60(V)

Kecerahan (CD/m²):

300 nit

Antarmuka:

4 kawat SPI

IC pengemudi:

ST7789V

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Harga

Please contact us for latest price

Kemasan rincian

Ukuran FCL: 40*30*20cm / Contoh Kemasan: 20*18*13cm

Waktu pengiriman

1-7 hari kerja

Syarat-syarat pembayaran

T/T, L/C, Kartu Kredit, PayPal, D/A, D/P, Western Union, MoneyGram

Menyediakan kemampuan

40.000 pcs per hari

Produk-produk terkait

video

Polcd TFT LCD Manufacturer 2.8 Inch TFT LCD Module 240x320 High Resolution TFT Display

Dapatkan Harga Terbaik

video

Polcd 18 Pin 1,69 Inch TFT kecil Tampilan ST7789V 240x240 IPS LCD

Dapatkan Harga Terbaik

video

Polcd 4.5 Inch TFT LCD Module 480*854 Resolusi 300 Nits RGB 24bit Interface 4,5" LCD Display

Dapatkan Harga Terbaik

video

Polcd 2,8 Inch TFT Display 240x320 IPS Screen Kontras Tinggi 1200:1 TFT Panel LCD Modul

Dapatkan Harga Terbaik

Hubungi kami

00-86-13714394335

anna@polcd.com

86-755-21011746

Hubungi sekarang

Deskripsi Produk

Description:

This 2.8-inch TFT LCD display features IPS technology and an SPI interface, delivering clear and accurate visuals suitable for a range of applications that require high-quality displays in a compact form factor.

Parameter:

Model	P028B124-IPS
Screen Size	2.8 inch
Number of Pixel	240RGB(H)x320(V)
Pin	14 pins
Display area	43.20(H)x57.60(V)mm
Pixel pitch	0.180(H)x0.180(V)mm

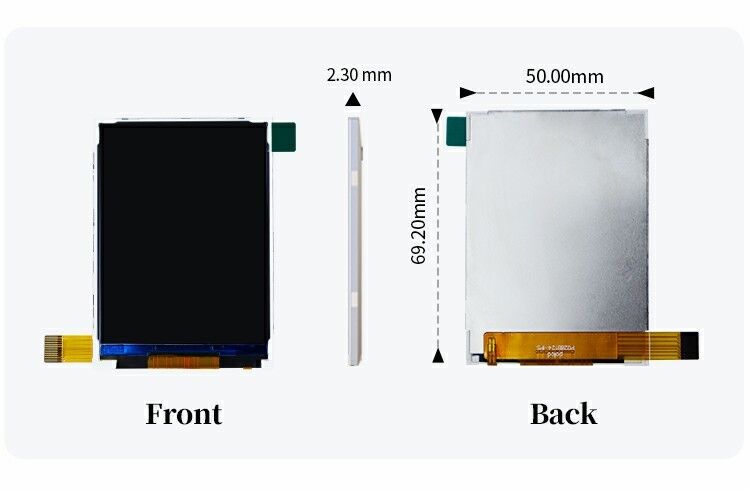

Outline Dimension	50.00x69.20x2.30mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m²)	300 nit
Contrast Ratio	1200:1
Interface	4wire SPI
Back-light	LED Side-light type
Drive IC	ST7789V
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

Polcd 2.8'' Custom Qvga 240x320 Color TFT Panel Display 4wire SPI interface IPS LCD Screen 0

Features

Featuring IPS technology and an SPI interface, this 2.8-inch TFT LCD display provides clear and accurate visuals, making it suitable for a wide range of applications. Its high resolution and color accuracy ensure clear and vibrant visuals, while the SPI interface enables faster data transfer, making it an ideal choice for applications that require real-time data updates. The display's compact size and versatile functionality make it an excellent choice for manufacturers seeking high-quality display solutions in a small form factor. Additionally, the IPS technology provides wider viewing angles and better color reproduction, making the display suitable for applications where visual clarity and accuracy are crucial.
