Name: Polcd 2" Small tft lcd 240x320 Resolution ST7789V IC Screen MCU interface 2 Inch LCD Display Module
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P020H030-IPS
Availability: InStock

Rumah > Produk > Modul LCD TFT >

Polcd 2" Small tft lcd 240x320 Resolution ST7789V IC Screen MCU interface 2 Inch LCD Display Module

2 inch TFT LCD display module

ST7789V IC LCD screen

240x320 resolution MCU interface

Tempat asal:

Shenzhen, Cina

Nama merek:

Polcd

Sertifikasi:

RoHS, ISO9001

Nomor model:

P020H030-IPS

Hubungi kami

Permintaan Penawaran

Rincian Produk

Resolusi:

240x320

Antarmuka:

MCU 8 bit

IC pengemudi:

ST7789V

Kecerahan (CD/m²):

300 nit

Sudut pandang:

IPS Semua Sudut Pandang

Area tampilan:

30,60(T)x40,80(V)mm

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Harga

Please contact us for latest price

Kemasan rincian

Ukuran FCL: 40*30*20cm / Contoh Kemasan: 20*18*13cm

Waktu pengiriman

1-7 hari kerja

Syarat-syarat pembayaran

T/T, L/C, Kartu Kredit, PayPal, D/A, D/P, Western Union, MoneyGram

Menyediakan kemampuan

40.000 pcs per hari

Produk-produk terkait

video

Polcd 7 Inch 800*480 Resolution 50 Pin RGB Screen 7" Capacitive Touch TFT Display For Industrial Medical

Dapatkan Harga Terbaik

video

Polcd 2.1" Circular TFT Panel Module 480x480 Mipi Interface Colorful 2.1 Inch Round LCD Display Screen

Dapatkan Harga Terbaik

video

Polcd 4.0 inch 480x480 Square TFT Touch Screen RGB interface 4" LCD TFT Color Display Projector Module

Dapatkan Harga Terbaik

video

Polcd IPS Screen 1.9 inch 170x320 Resolution ST7789P3-G6 ic High Brightness 330nits 1.9" TFT LCD Display

Dapatkan Harga Terbaik

Hubungi kami

00-86-13714394335

anna@polcd.com

86-755-21011746

Hubungi sekarang

Deskripsi Produk

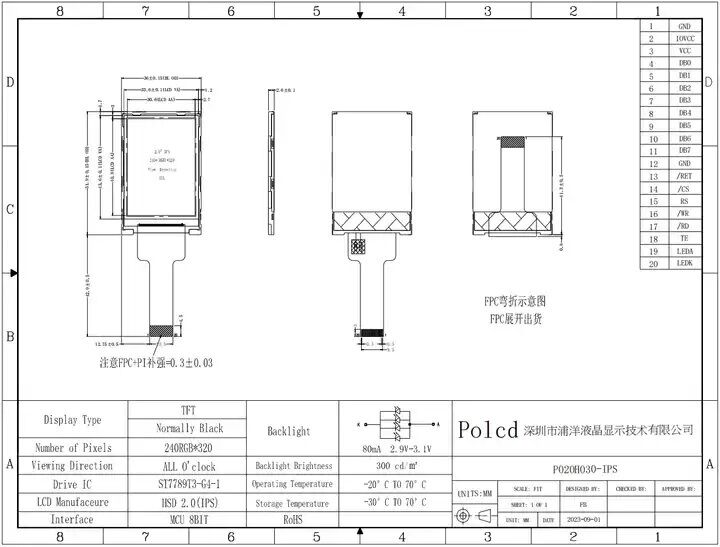

Parameter:

Model	P020H030-IPS
Screen Size	2.0 inch
Number of Pixel	240RGB(H)x320(V)
Display area	30.60(H)x40.80(V)mm
Pixel pitch	0.0425(H)x0.1275(V)mm
Outline Dimension	36.00x51.90x2.55mm
Pixel arrangement	RGB Vertical Stripe
Pins	20 Pins
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m2)	300 nit
Contrast Ratio	800:1
Surface treatment	--
Interface	8 bit MCU
Back-light	LED Side-light type
Drive IC	ST7789V
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

Features

8Bit MCU interface.

Applications

1. MPOS Device.

2. Personal Navigation Device.

3. Other devices which require high quality displays.
