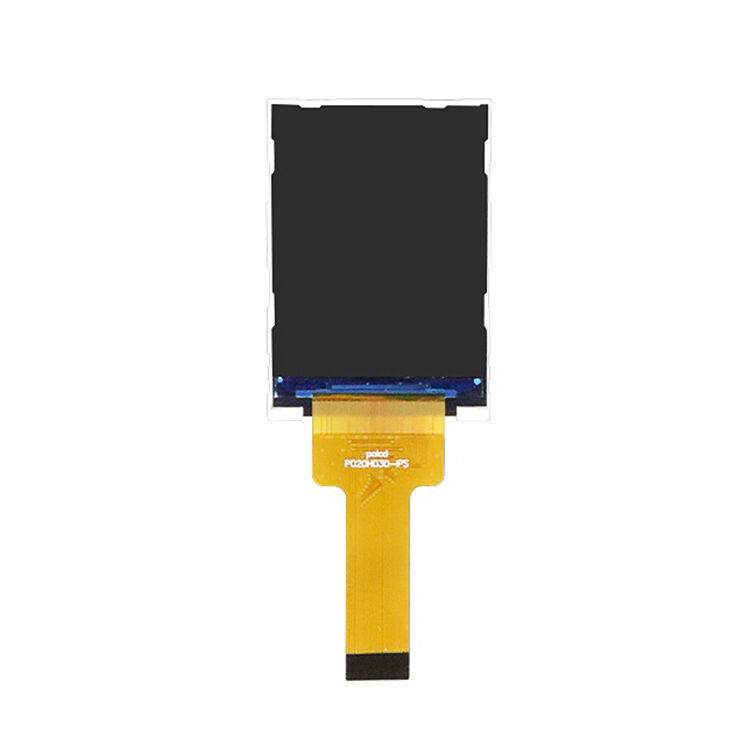

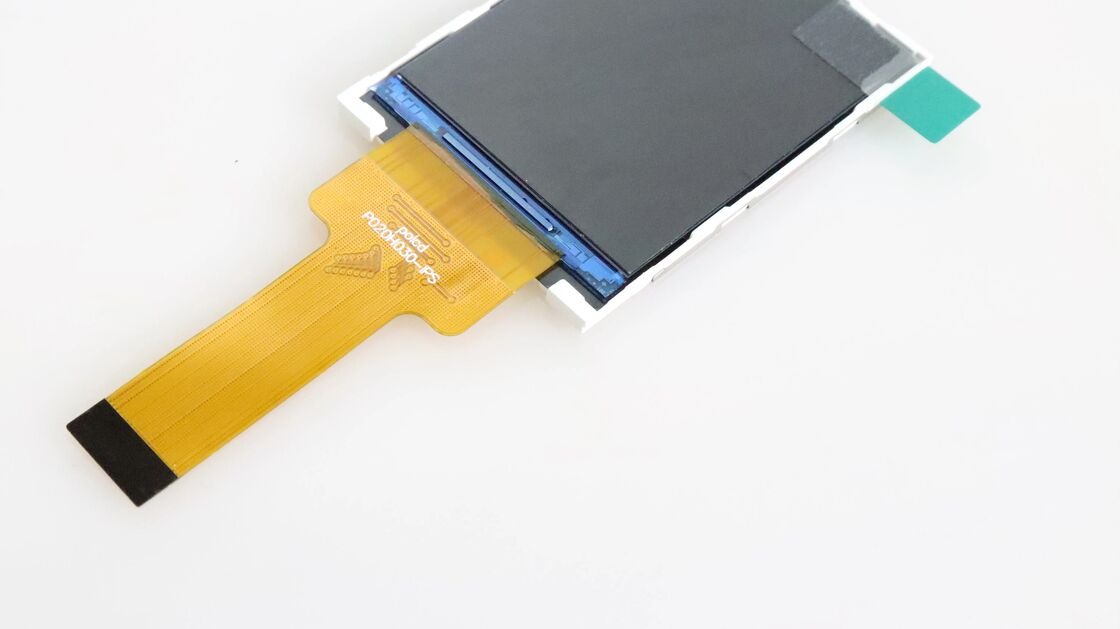

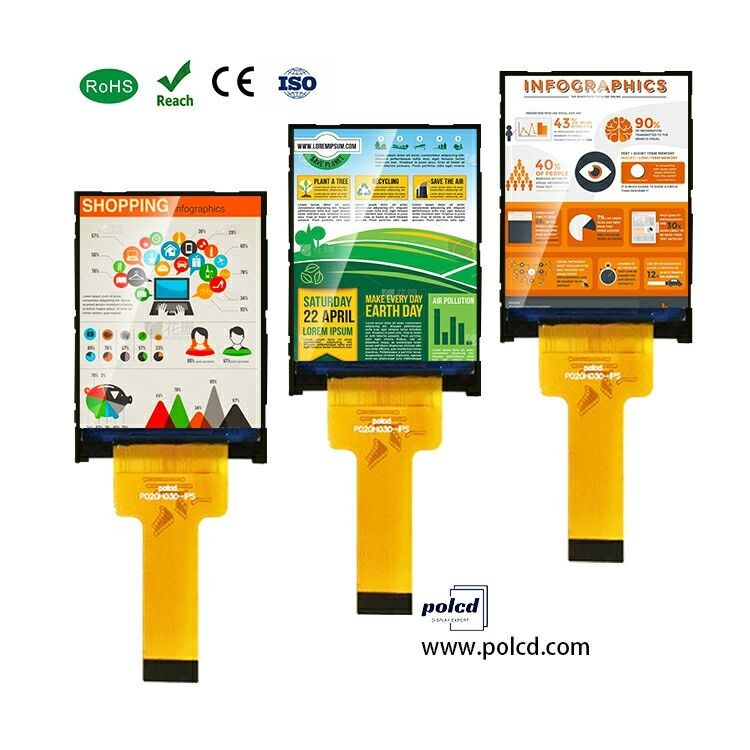

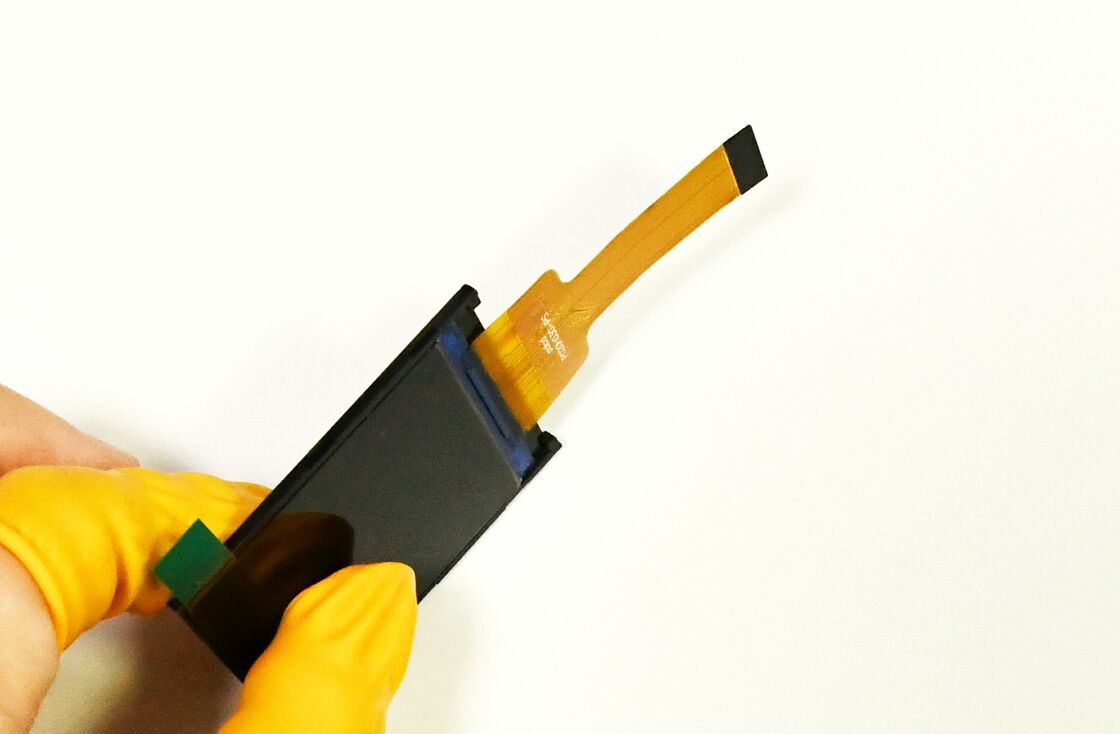

Name: Polcd 2 inch 240*320 IPS Screen Transmissive ST7789V 300 nit 20 pin MCU interface TFT LCD Module Display
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P020H030-IPS
Availability: InStock

Rumah > Produk > Modul LCD TFT >

Polcd 2 inch 240*320 IPS Screen Transmissive ST7789V 300 nit 20 pin MCU interface TFT LCD Module Display

2 inch IPS TFT LCD module

ST7789V transmissive display screen

20 pin MCU interface LCD

Tempat asal:

Shenzhen, Cina

Nama merek:

Polcd

Sertifikasi:

RoHS, ISO9001

Nomor model:

P020H030-IPS

Hubungi kami

Permintaan Penawaran

Rincian Produk

Resolusi:

240x320

Antarmuka:

MCU 8 bit

IC pengemudi:

ST7789V

Kecerahan (CD/m²):

300 nit

Sudut pandang:

IPS Semua Sudut Pandang

Area tampilan:

30,60(T)x40,80(V)mm

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Harga

Please contact us for latest price

Kemasan rincian

Ukuran FCL: 40*30*20cm / Contoh Kemasan: 20*18*13cm

Waktu pengiriman

1-7 hari kerja

Syarat-syarat pembayaran

T/T, L/C, Kartu Kredit, PayPal, D/A, D/P, Western Union, MoneyGram

Menyediakan kemampuan

40.000 pcs per hari

Produk-produk terkait

video

00-86-13714394335

anna@polcd.com

86-755-21011746

Hubungi sekarang

Deskripsi Produk

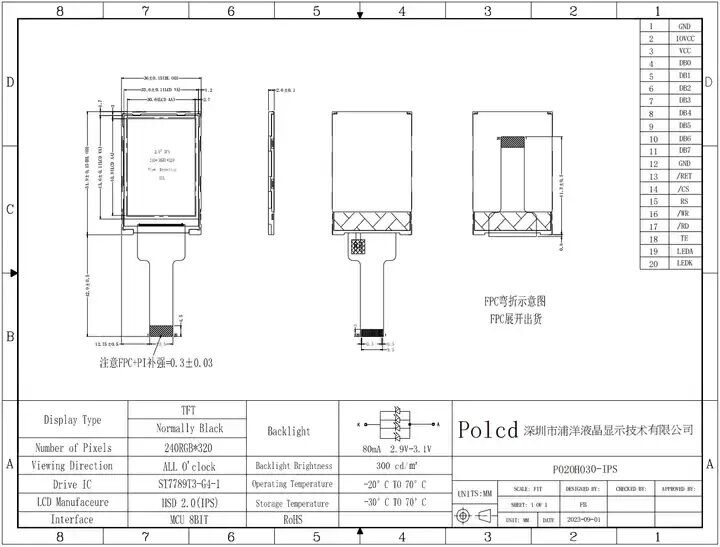

Parameter:

Model	P020H030-IPS
Screen Size	2.0 inch
Number of Pixel	240RGB(H)x320(V)
Display area	30.60(H)x40.80(V)mm
Pixel pitch	0.0425(H)x0.1275(V)mm
Outline Dimension	36.00x51.90x2.55mm
Pixel arrangement	RGB Vertical Stripe
Pins	20 Pins
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m2)	300 nit
Contrast Ratio	800:1
Surface treatment	--
Interface	8 bit MCU
Back-light	LED Side-light type
Drive IC	ST7789V
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

Features

8Bit MCU interface.

Applications

1. MPOS Device.

2. Personal Navigation Device.

3. Other devices which require high quality displays.

Polcd 2 inch 240*320 IPS Screen Transmissive ST7789V 300 nit 20 pin MCU interface TFT LCD Module Display 0
