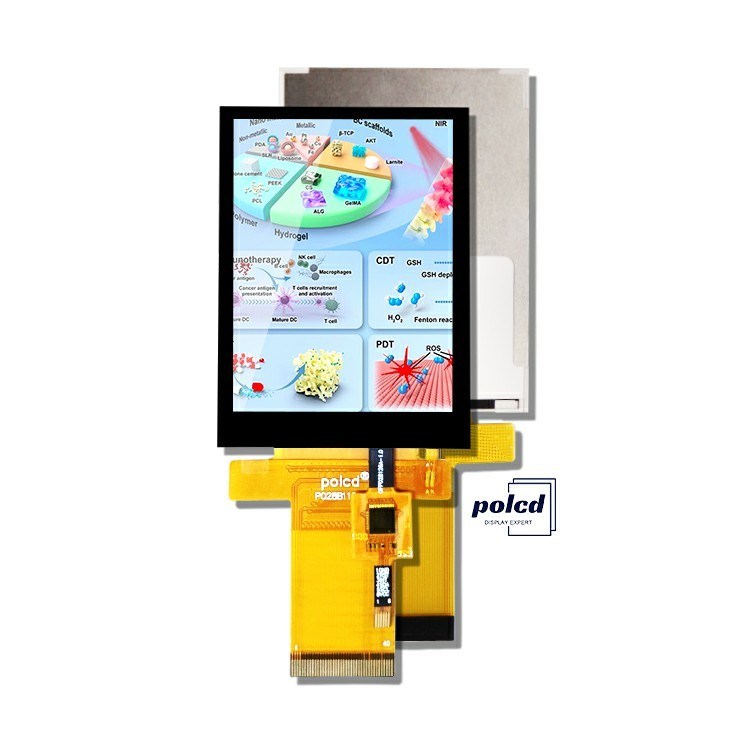

Name: Polcd 2.8 Inch 480x640 Resolution IPS Glass TFT LCD Display Module with RGB Interface Type LCM
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P028B119-IPS-CTP
Availability: InStock

Rumah > Produk > layar lcd ips tft >

Polcd 2.8 Inch 480x640 Resolution IPS Glass TFT LCD Display Module with RGB Interface Type LCM

2.8 inch IPS TFT LCD display

480x640 resolution RGB LCD module

IPS glass TFT display with LCM

Tempat asal:

Shenzhen, Cina

Nama merek:

Polcd

Sertifikasi:

RoHS, ISO9001

Nomor model:

P028B119-IPS-CTP

Hubungi kami

Permintaan Penawaran

Rincian Produk

Ukuran Layar:

2,8 inci

Resolusi:

480RGB(T)x640(V)

Kecerahan (CD/m²):

300 nit

Antarmuka:

RGB 24 bit

IC pengemudi:

ST7701S

Area tampilan:

43,20(H)x57,60(V)

Melihat Arah (mata):

semua

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Harga

Please contact us for latest price

Kemasan rincian

Ukuran FCL: 40*30*20cm / Contoh Kemasan: 20*18*13cm

Waktu pengiriman

1 ~ 7 hari kerja

Syarat-syarat pembayaran

T/T, L/C, Kartu Kredit, PayPal, D/P, D/A, Western Union, MoneyGram

Menyediakan kemampuan

40.000 pcs per hari

Produk-produk terkait

video

Polcd 720x1280 LCD 5 "High Brightness MIPI Interface IPS 5 Inch TFT LCD Modul dengan Wide Operating Temp

Dapatkan Harga Terbaik

video

Polcd 5 Inch LCD Vertical Screen 720*1280 MIPI Interface Capacitive Touch Panel IPS 5' TFT Display

Dapatkan Harga Terbaik

video

Polcd Custom RGB 24bit Interface 4.0 Inch 480*800 Dots TFT LCD Display Panel Warna Kecil

Dapatkan Harga Terbaik

video

Polcd Kecil 2.3 inci 480x360 Resolusi Tinggi RGB Warna IPS Sudut Penampakan Landscape TFT LCD Screen

Dapatkan Harga Terbaik

Hubungi kami

00-86-13714394335

anna@polcd.com

86-755-21011746

Hubungi sekarang

Deskripsi Produk

TFT Display Description:

Equipped with Full viewing angle, RGB interface, and brightness of 300 nit, this 2.8-inch TFT LCD display delivers a high-quality display suitable for various applications, especially in low-light environments.

Parameter:

Model	P028B119-IPS-CTP
Screen Size	2.8 inch
Number of Pixel	480RGB(H)x640(V)
Pin	40 pin
Display area	43.20(H)x57.60(V)mm
Pixel pitch	0.09(H)x0.09(V)mm

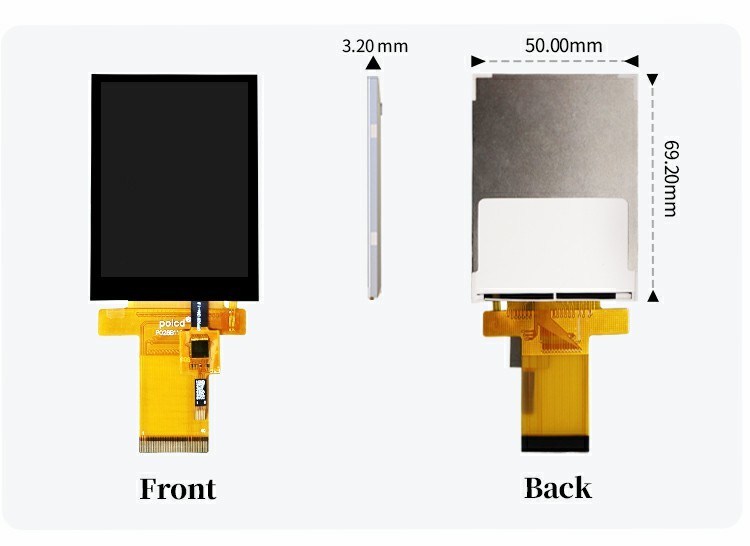

Outline Dimension	50.00x69.20x3.20mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m2)	300 nit
Contrast Ratio	1000:1
Interface	RGB 24bit
Back-light	LED Side-light type
LCM IC	ST7701S
CTP IC	GT911
Operation Temperature	-20~70
Storage Temperature	-30~80
