Name: Polcd RoHS Small 2.3 Inch 480x360 TFT Screen Module IPS Full Color RGB SPI 2.31 Inch Tft LCD Display
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P023B029-IPS
Availability: InStock

Rumah > Produk > layar lcd ips tft >

Polcd RoHS Small 2.3 Inch 480x360 TFT Screen Module IPS Full Color RGB SPI 2.31 Inch Tft LCD Display

Tempat asal:

Shenzhen, Cina

Nama merek:

Polcd

Sertifikasi:

RoHS, ISO9001

Nomor model:

P023B029-IPS

Hubungi kami

Permintaan Penawaran

Rincian Produk

Ukuran (inci):

2,31 inci

Resolusi:

480*360

Area tampilan:

46.8 ((H) x35.1 ((V) mm

Kecerahan (CD/m²):

310 menit

Antarmuka:

RGB 24 bit

IC pengemudi:

ST7701S

Melihat Arah (mata):

Sudut Pandang Penuh IPS

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Harga

Please contact us for latest price

Kemasan rincian

Ukuran FCL: 40*30*20cm / Contoh Kemasan: 20*18*13cm

Waktu pengiriman

1 ~ 7 hari kerja

Syarat-syarat pembayaran

T/T, L/C, Kartu Kredit, PayPal, D/A, D/P, Western Union, MoneyGram

Menyediakan kemampuan

40.000 pcs per hari

Produk-produk terkait

video

00-86-13714394335

anna@polcd.com

86-755-21011746

Hubungi sekarang

Deskripsi Produk

Parameter:

Model	P023B029-IPS
Screen Size	2.31 inch
Number of Pixel	480RGB(H)x360(V)
Display area	46.8(H)x35.1(V)mm
Pixel pitch	0.0975(H)x0.0975(V)mm
Pin	40 pin
Outline Dimension	51x45.8x2.4mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m²)	310 nit
Contrast Ratio	1200:1
Interface	RGB 24bit
Back-light	LED Side-light type
LCM Drive IC	ST7701S
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

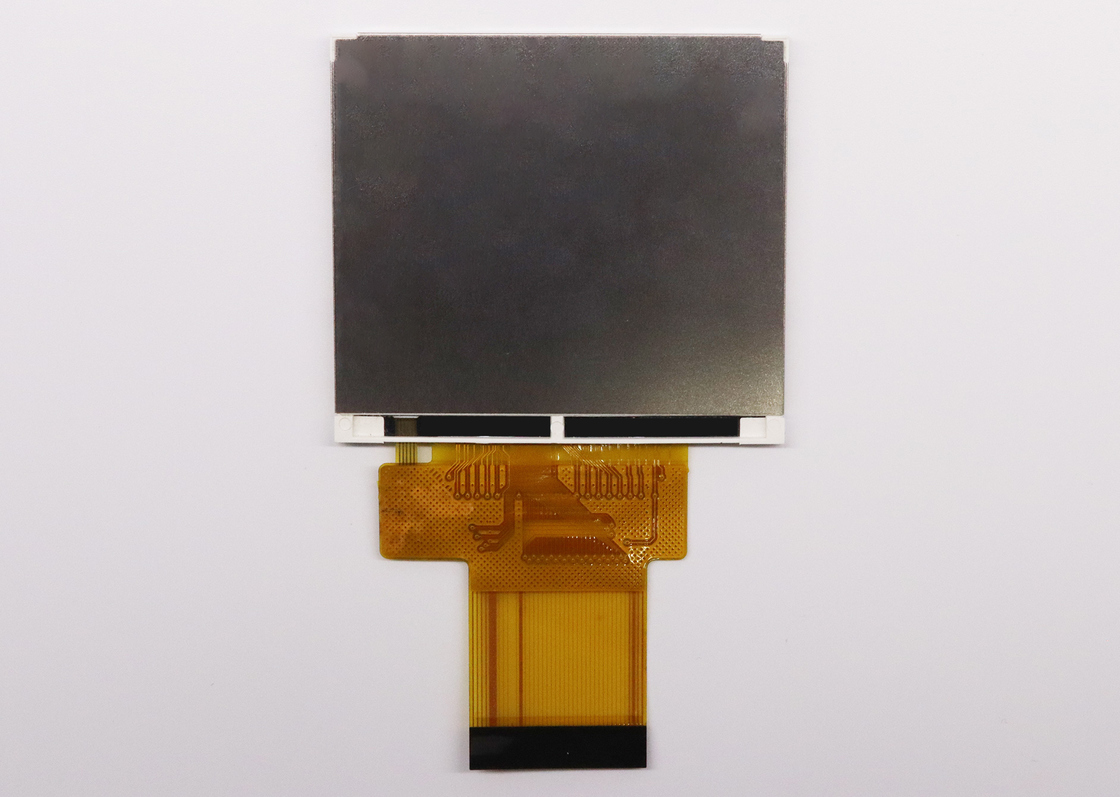

Polcd RoHS Small 2.3 Inch 480x360 TFT Screen Module IPS Full Color RGB SPI 2.31 Inch Tft LCD Display 1
