Polcd 3.5 Inch 320*480 IPS Screen Tft Lcd Display Module Panel For Camera

Polcd 3.5 Inch 320*480 IPS Screen Tft Lcd Display Module Panel For Camera

Tempat asal:

Shenzhen, Tiongkok

Nama merek:

Polcd

Sertifikasi:

RoHS, ISO9001

Nomor model:

P035M071-IPS

Hubungi kami

Permintaan Penawaran
Polcd 3.5 Inch 320*480 IPS Screen Tft Lcd Display Module Panel For Camera
Polcd 3.5 Inch 320*480 IPS Screen Tft Lcd Display Module Panel For Camera Polcd 3.5 Inch 320*480 IPS Screen Tft Lcd Display Module Panel For Camera Polcd 3.5 Inch 320*480 IPS Screen Tft Lcd Display Module Panel For Camera Polcd 3.5 Inch 320*480 IPS Screen Tft Lcd Display Module Panel For Camera
Rincian Produk
Resolusi:
3,5 inci 320x480
Antarmuka:
Kabel MCU 8/16BIT SPI 3/4
Kecerahan (CD/m²):
300 nit
Melihat Arah (mata):
IPS semua sudut pandang
Ic pengemudi:
ILI9488
Daerah tampilan:
48,96(H)x73,44(V)mm
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order
1 buah
Harga
Please contact us for latest price
Kemasan rincian
Ukuran FCL: 40*30*20cm / Contoh Kemasan: 20*18*13cm
Waktu pengiriman
1-7 Hari Kerja
Syarat-syarat pembayaran
T/T, L/C, Kartu Kredit, PayPal, D/A, D/P, Western Union, MoneyGram
Menyediakan kemampuan
40.000 pcs per hari
Produk-produk terkait
Harga yang pantas Polcd 3.5 inch Capacitive Touch Screen Manufacturer MCU SPI interface 40pin 320x480 IPS TFT LCD Module on line video

Polcd 3.5 inch Capacitive Touch Screen Manufacturer MCU SPI interface 40pin 320x480 IPS TFT LCD Module

Dapatkan Harga Terbaik
Harga yang pantas Polcd 3.5 Inch 320*480 IPS Screen Tft Lcd Display Module Panel For Camera on line video

Polcd 3.5 Inch 320*480 IPS Screen Tft Lcd Display Module Panel For Camera

Dapatkan Harga Terbaik
Harga yang pantas Polcd 3.5 Inch TFT Display MCU SPI Interface Industrial Equipment IPS Screen Full View Color Lcd Module on line video

Polcd 3.5 Inch TFT Display MCU SPI Interface Industrial Equipment IPS Screen Full View Color Lcd Module

Dapatkan Harga Terbaik
Harga yang pantas Polcd 3.5 Inch LCD Module 320X480 pixels IPS Screen ILI9488 SPI MCU interface TFT Display on line video

Polcd 3.5 Inch LCD Module 320X480 pixels IPS Screen ILI9488 SPI MCU interface TFT Display

Dapatkan Harga Terbaik
Hubungi kami
008613714394335
anna@polcd.com
86-755-21011746
Hubungi sekarang
Deskripsi Produk

Parameter:

Model P035M071-IPS
Screen Size 3.5 inch
Number of Pixel 320RGB(H)x480(V)
Display area 48.96(H)x73.44(V)mm
Pixel pitch 51(H)x153(V) um
Pins 40 pins

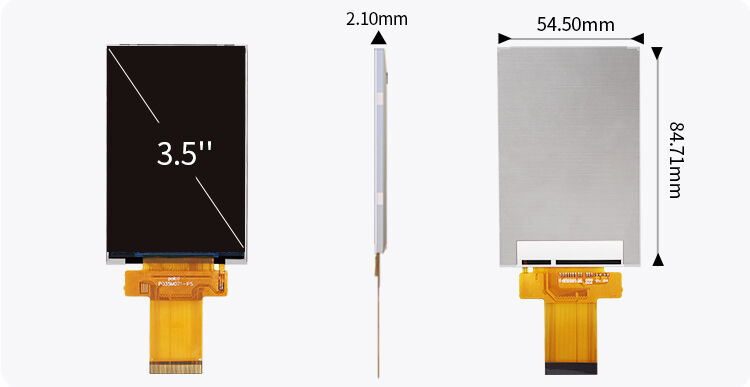

Outline Dimension 54.48x84.71x2.10mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Display Color 262k
Luminance(cd/m2) 300 nit
Contrast Ratio 700:1
Interface MCU 8/16bit 3/4wire SPI
Back-light LED Side-light type
Drive IC ILI9488
Operation Temperature -20~70 ℃
Storage Temperature -30~80 ℃


Description of 3.5 inch TFT LCD:

3.5 inch TFT LCD is a high-quality display screen that is commonly used in various electronic devices, including handheld devices, automotive displays, and medical equipment.

The 3.5 inch TFT LCD is a versatile and reliable display technology that offers high-quality display performance, low power consumption, and durability. Its wide range of applications and customization options make it an ideal choice for a variety of electronic devices.
