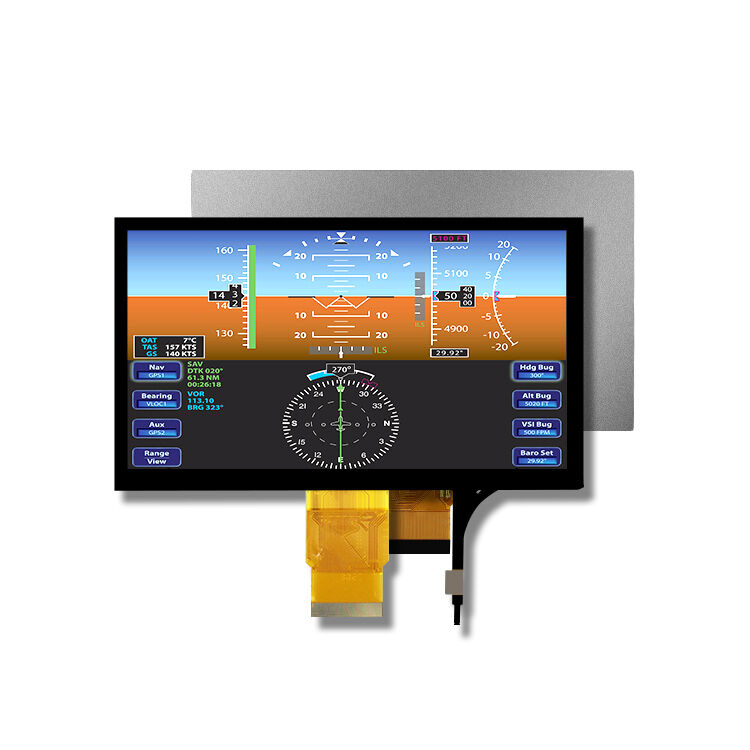

Name: Polcd 7 inch Capacitive PCAP Touch Panel 800x480 Resolution RGB interface TFT LCD Display
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P070C012-CTP
Availability: InStock

Rumah > Produk > Modul LCD TFT >

Polcd 7 inch Capacitive PCAP Touch Panel 800x480 Resolution RGB interface TFT LCD Display

7 inch capacitive PCAP touch panel

800x480 resolution TFT LCD display

RGB interface TFT LCD module

Tempat asal:

Shenzhen, Cina

Nama merek:

Polcd

Sertifikasi:

RoHS, ISO9001

Nomor model:

P070C012-CTP

Hubungi kami

Permintaan Penawaran

Rincian Produk

Ukuran (inci):

7 inci 800x480

Kecerahan (CD/m²):

400 nit

Antarmuka:

RGB 24 bit

IC pengemudi:

1*EK9716BD4 + 1*EK73002AB2

Melihat Arah (mata):

Jam 6

Rasio Kontras:

500: 1

Area tampilan:

153,84(T)x85,63(V)mm

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Harga

Please contact us for latest price

Kemasan rincian

Ukuran FCL: 40*30*20cm / Contoh Kemasan: 20*18*13cm

Waktu pengiriman

1-7 hari kerja

Syarat-syarat pembayaran

T/T, L/C, Kartu Kredit, PayPal, D/A, D/P, Western Union, MoneyGram

Menyediakan kemampuan

40.000 pcs per hari

Produk-produk terkait

video

Polcd 7 Inch 800*480 Resolution 50 Pin RGB Screen 7" Capacitive Touch TFT Display For Industrial Medical

Dapatkan Harga Terbaik

video

Polcd 2.1" Circular TFT Panel Module 480x480 Mipi Interface Colorful 2.1 Inch Round LCD Display Screen

Dapatkan Harga Terbaik

video

Polcd 4.0 inch 480x480 Square TFT Touch Screen RGB interface 4" LCD TFT Color Display Projector Module

Dapatkan Harga Terbaik

video

Polcd IPS Screen 1.9 inch 170x320 Resolution ST7789P3-G6 ic High Brightness 330nits 1.9" TFT LCD Display

Dapatkan Harga Terbaik

Hubungi kami

00-86-13714394335

anna@polcd.com

86-755-21011746

Hubungi sekarang

Deskripsi Produk

Description:

7.0-inch TFT LCD is a high-quality display screen commonly used in portable electronic devices such as smartphones, tablets, and handheld gaming devices. It offers a clear and sharp visual display with vibrant colors, making it an ideal choice for a wide range of applications.

Model	P070C012-CTP
Screen Size	7 inch
Number of Pixel	800RGB(H)x480(V)
PIN	50 pin
Display area	154.21(H)x85.92(V)mm
Pixel pitch	0.0641(H)x0.1784(V)mm
Outline Dimension	164.86x99.96x6.00mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally White
Viewing Direction(eye)	6 o'clock
Display Color	262k
Luminance(cd/m²)	300 nit
Contrast Ratio	500:1
Interface	RGB 24bit
Back-light	LED Side-light type
Drive IC	*1EK9716BD4 + 1EK73002AB2*
Operation Temperature	-20~70 ℃
Storage Temperature	-30~80 ℃

Polcd 7 inch Capacitive PCAP Touch Panel 800x480 Resolution RGB interface TFT LCD Display 0
