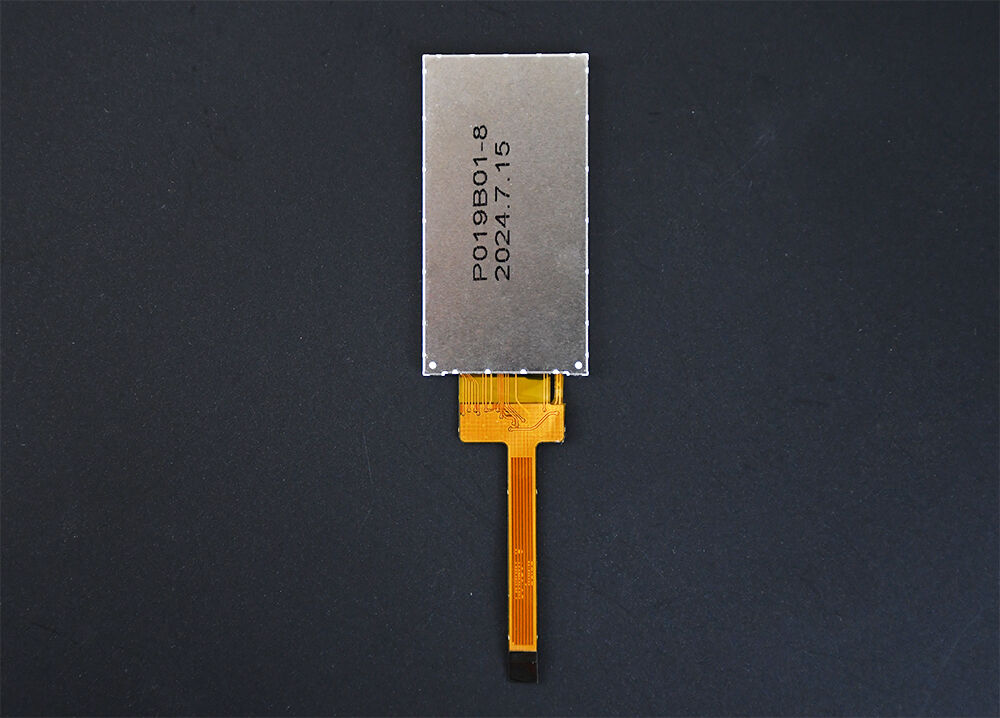

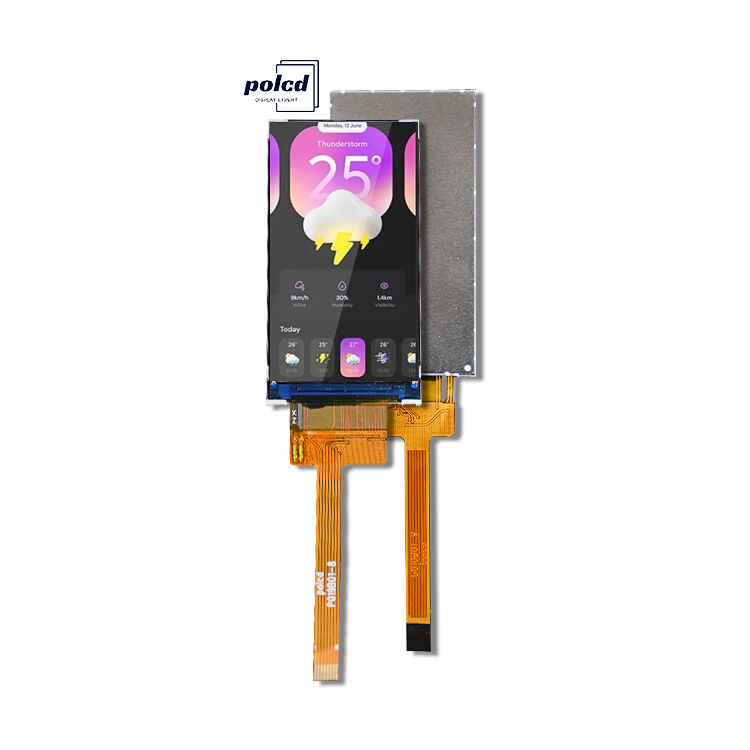

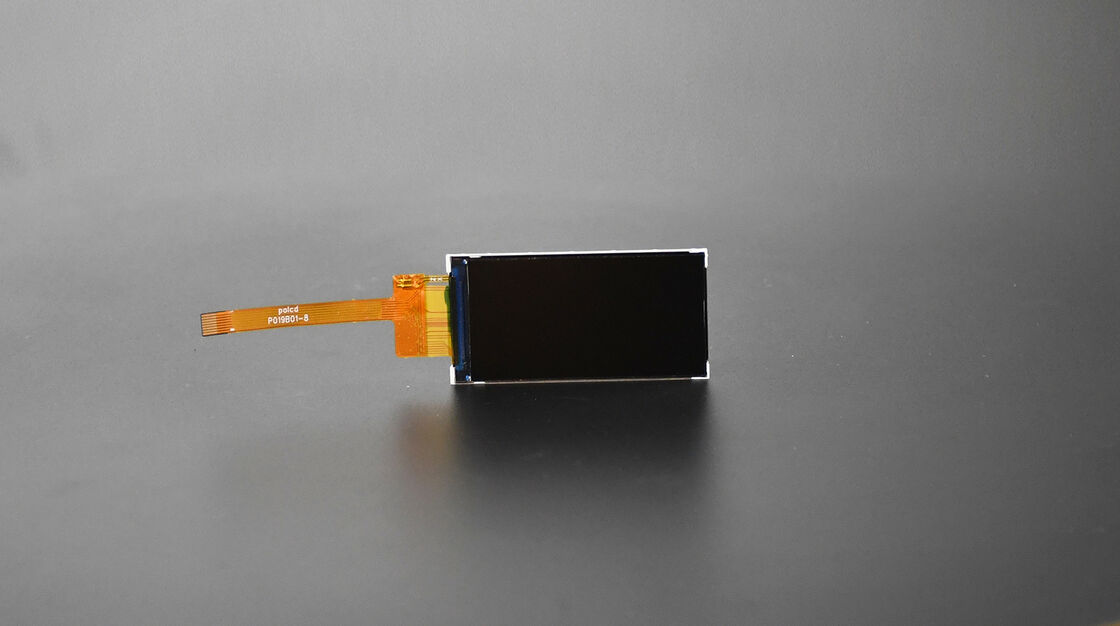

Name: Polcd IPS Screen 1.9 inch 170x320 Resolution ST7789P3-G6 ic High Brightness 330nits 1.9" TFT LCD Display
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P019B01-8
Availability: InStock

Rumah > Produk > Modul LCD TFT >

Polcd IPS Screen 1.9 inch 170x320 Resolution ST7789P3-G6 ic High Brightness 330nits 1.9" TFT LCD Display

1.9 inch IPS TFT LCD display

ST7789P3-G6 TFT LCD module

330nits high brightness LCD screen

Tempat asal:

Shenzhen, Cina

Nama merek:

Polcd

Sertifikasi:

RoHS, ISO9001

Nomor model:

P019B01-8

Hubungi kami

Permintaan Penawaran

Rincian Produk

Ukuran Layar:

1,9 inci

Resolusi:

170X320

Area aktif:

22,7(T)x42,72(L)mm

Kecerahan (CD/m²):

600 kali

Antarmuka:

SPI 4 Jalur

IC pengemudi:

ST7789P3-G6

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Harga

Please contact us for latest price

Kemasan rincian

Ukuran FCL: 40*30*20cm / Contoh Kemasan: 20*18*13cm

Waktu pengiriman

1 ~ 7 hari kerja

Syarat-syarat pembayaran

T/T, L/C, Kartu Kredit, PayPal, D/A, D/P, Western Union, MoneyGram

Menyediakan kemampuan

40.000 pcs per hari

Produk-produk terkait

video

00-86-13714394335

anna@polcd.com

86-755-21011746

Hubungi sekarang

Deskripsi Produk

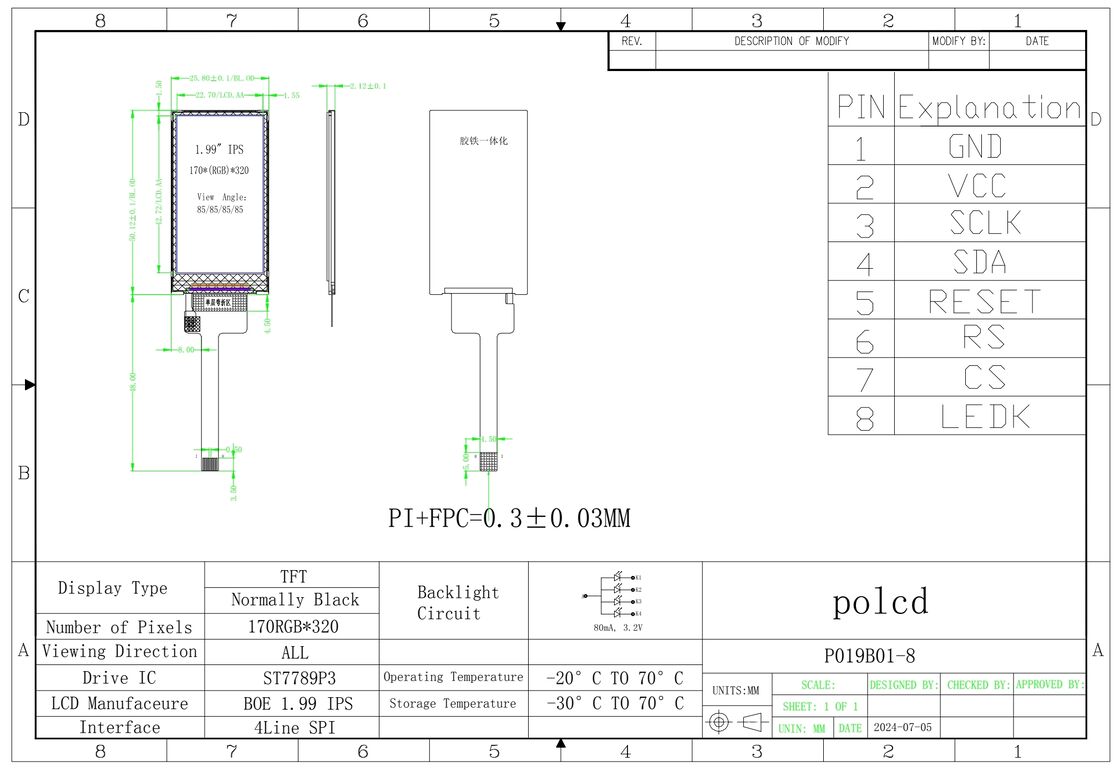

Parameter:

Model	P019B01-8
Screen Size	1.9 inch
Number of Pixel	170RGB(H)x320(V)
Display area	22.7(H)x42.72(V)mm
Pixel pitch	133.5(H)x133.5(V)um
Pins	8 pins
Outline Dimension	25.8x50.12x2.12±0.1mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m²)	600 nit
Contrast Ratio	800:1
Interface	4W SPI
Back-light	LED Side-light type
Drive IC	ST7789P3-G6
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

Polcd IPS Screen 1.9 inch 170x320 Resolution ST7789P3-G6 ic High Brightness 330nits 1.9" TFT LCD Display 0
