Name: Polcd 2.3 Inch 320*240 ILI9342C TFT LCD Module SPI Interface 40pin IPS Model TFT LCD Display
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P023H022
Availability: InStock

Rumah > Produk > Layar LCD Medis >

Polcd 2.3 Inch 320*240 ILI9342C TFT LCD Module SPI Interface 40pin IPS Model TFT LCD Display

2.3 inch IPS TFT LCD display

SPI interface TFT LCD module

medical LCD display with warranty

Tempat asal:

Shenzhen, Cina

Nama merek:

Polcd

Sertifikasi:

RoHS, ISO9001

Nomor model:

P023H022

Hubungi kami

Permintaan Penawaran

Rincian Produk

Ukuran (inci):

2.31

Resolusi:

320*240

Kecerahan (CD/m²):

300

Antarmuka:

RGB 18 bit

IC pengemudi:

ILI9342C

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Harga

Please contact us for latest price

Kemasan rincian

Ukuran FCL: 40*30*20cm / Contoh Kemasan: 20*18*13cm

Waktu pengiriman

1-7 hari kerja

Syarat-syarat pembayaran

T/T, L/C, Kartu Kredit, PayPal, D/A, D/P, Western Union, MoneyGram

Menyediakan kemampuan

40.000 pcs per hari

Produk-produk terkait

video

Polcd 5 inci TFT 50pin MIPI antarmuka ST7703 720x1280 5 " Warna Tft LCD Display Module

Dapatkan Harga Terbaik

video

Polcd 3,5 inci 320*480 LCD Display ILI9488 built-in Capacitive Touch Panel High Brightness TFT LCD

Dapatkan Harga Terbaik

video

Polcd 3.5 Inch QVGA LCD Display dengan Resolusi 320x480 MCU SPI Interface Touch Panel 3.5 " TFT LCD Modul

Dapatkan Harga Terbaik

video

Polcd LCM pabrik 3,5 inci 320*480 Mcu Spi antarmuka 300 nit TFT LCD Module Capacitive Touch Panel Display

Dapatkan Harga Terbaik

Hubungi kami

00-86-13714394335

anna@polcd.com

86-755-21011746

Hubungi sekarang

Deskripsi Produk

Description:

2.31 inch TFT LCD (Thin-Film Transistor Liquid Crystal Display) refers to a small LCD display screen that measures 2.31 inches diagonally and uses thin-film transistor technology to control the liquid crystal display. It typically has a resolution of 240x320 pixels and the ability to display up to 262,144 colors. The screen may also include a capacitive touch panel for user input and interaction. This type of display technology is commonly used in various applications where a small, high-quality display with touch input is required, such as handheld devices, smartwatches, and medical devices.

Parameter:

Model	P023H022
Screen Size	2.31 inch
Number of Pixel	320RGB(H)x240(V)
Display area	46.75(H)x35.06(V)mm
Pixel pitch	0.1461(H)x0.1461(V)mm
Pins	40 pins

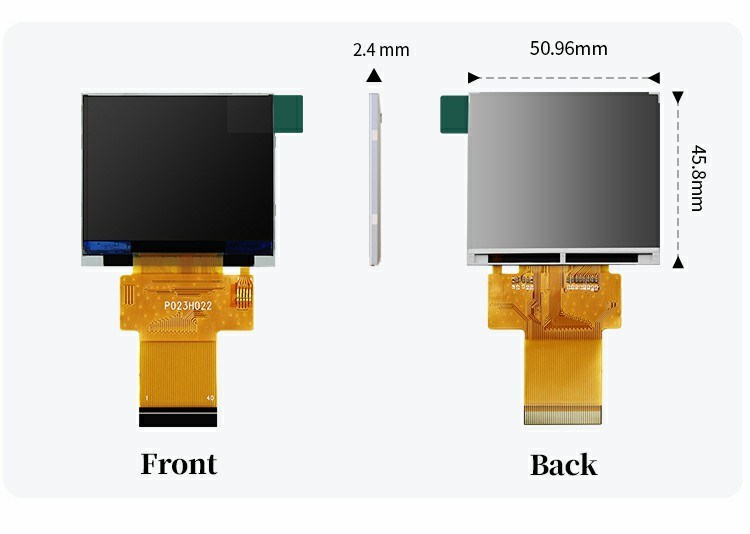

Outline Dimension	50.96x45.80x2.40mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally White
Viewing Direction(eye)	6 0'CLOCK
Display Color	262K
Luminance(cd/m2)	300 nit
Contrast Ratio	600:1
Interface	RGB 18BIT
Back-light	LED Side-light type
Drive IC	ILI9342C
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃
