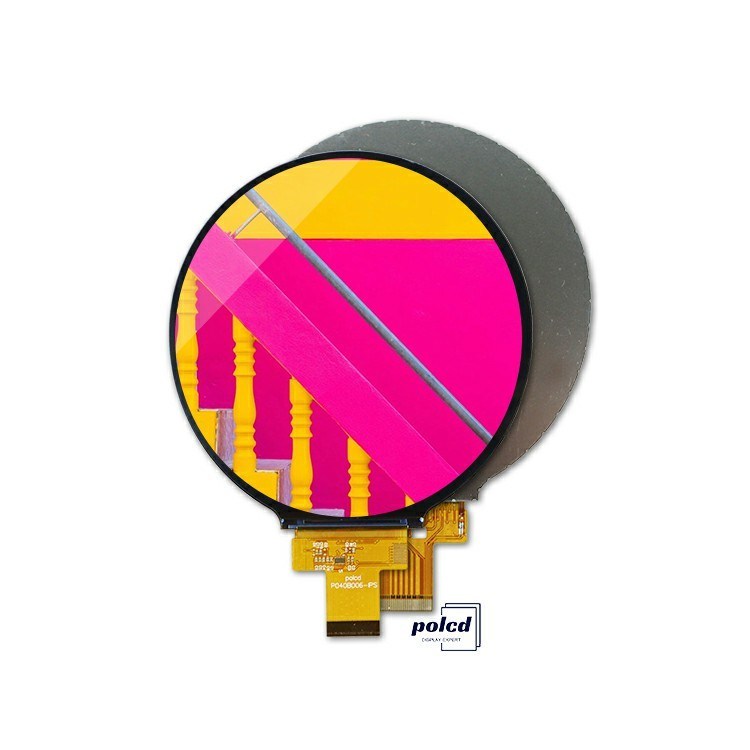

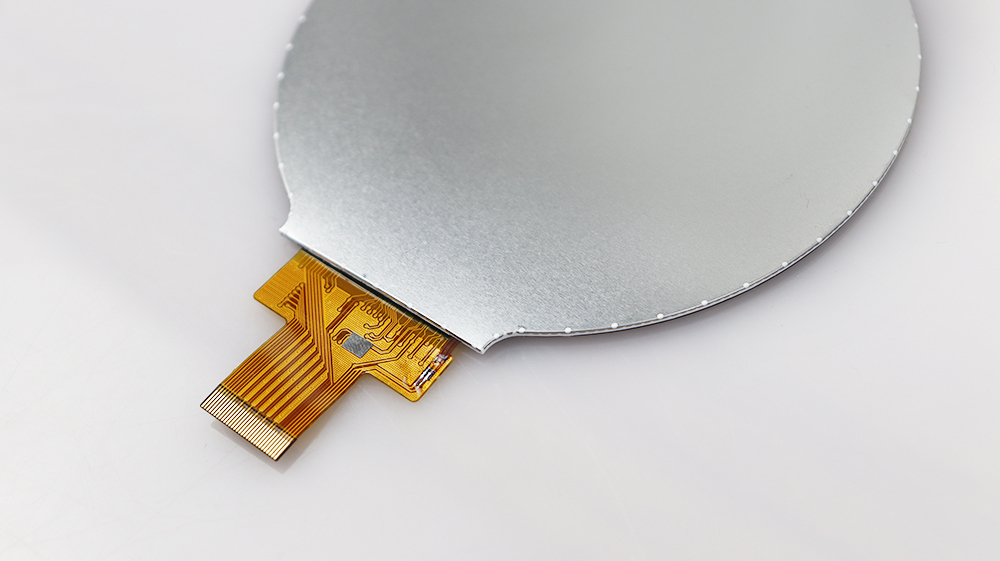

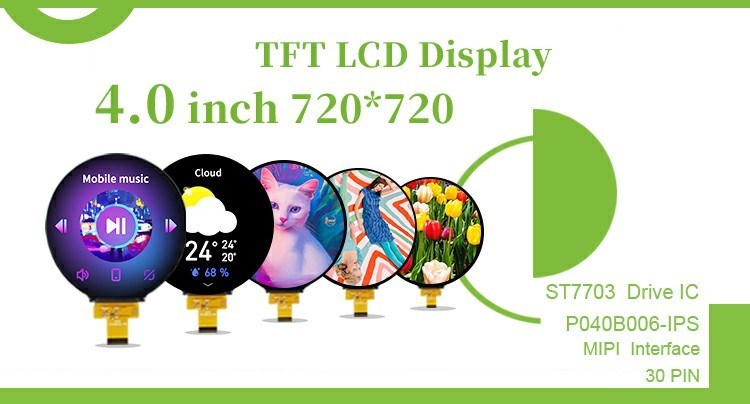

Name: Polcd High Brightness 4 Inch 720x720 ST7703 Drive MIPI Interface LCM Type IPS Round TFT LCD Display
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P040B006-IPS
Availability: InStock

Rumah > Produk > Modul LCD TFT >

Polcd High Brightness 4 Inch 720x720 ST7703 Drive MIPI Interface LCM Type IPS Round TFT LCD Display

4 inch IPS round TFT LCD

720x720 MIPI interface display

high brightness ST7703 drive LCM

Tempat asal:

Shenzhen, Cina

Nama merek:

Polcd

Sertifikasi:

RoHS, ISO9001

Nomor model:

P040B006-IPS

Hubungi kami

Permintaan Penawaran

Rincian Produk

Resolusi:

4 inci 720x720 IPS

Antarmuka:

4Line MIPI

IC pengemudi:

ST7703

Kecerahan (CD/m²):

300 nit

Sudut Pandang:

IPS semua sudut pandang

Area tampilan:

101.52 ((H) x101.52 ((V) mm

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Harga

Please contact us for latest price

Kemasan rincian

Ukuran FCL: 40*30*20cm / Contoh Kemasan: 20*18*13cm

Waktu pengiriman

1-7 hari kerja

Syarat-syarat pembayaran

T/T, L/C, Kartu Kredit, PayPal, D/A, D/P, Western Union, MoneyGram

Menyediakan kemampuan

40.000 pcs per hari

Produk-produk terkait

video

Polcd 2.4 Inci 240x320 ST7789V Antarmuka Mcu Sudut Pandang Penuh IPS 2.4" Modul Lcd TFT

Dapatkan Harga Terbaik

video

Polcd 2.4 Inch Touch Screen Module ST7789V IC 240x320 Resolusi 2.4 " TFT LCD Display

Dapatkan Harga Terbaik

video

Panel Tampilan Layar Sentuh Kapasitif LCD 2.4 Inci Kustom Polcd 240*320 Antarmuka MCU Modul Layar TFT

Dapatkan Harga Terbaik

video

Polcd Custom 2.4 Inch Lcd Capacitive Touch Screen Display Panel 240*320 SPI Interface Tft Screen Module

Dapatkan Harga Terbaik

Hubungi kami

00-86-13714394335

anna@polcd.com

86-755-21011746

Hubungi sekarang

Deskripsi Produk

Introduction:

4 inch round TFT LCD is a compact and versatile display module that utilizes Thin-Film Transistor (TFT) technology. With a circular shape and a 4-inch diagonal size, it offers a visually appealing and space-efficient solution for various applications.

Parameter:

Model	P040B006-IPS
Screen Size	4.0 inch
Number of Pixel	720RGB(H)x720(V)
Display area	101.52(H)x101.52(V)mm
Pixel pitch	0.047(H)x0.141(V)mm
Pin	30 pin
Outline Dimension	105.6x109.87x2.12mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	16.7M
Luminance(cd/m²)	300 nit
Contrast Ratio	1200:1
Interface	4Line MIPI
Back-light	LED Side-light type
Drive IC	ST7703
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

Feature:

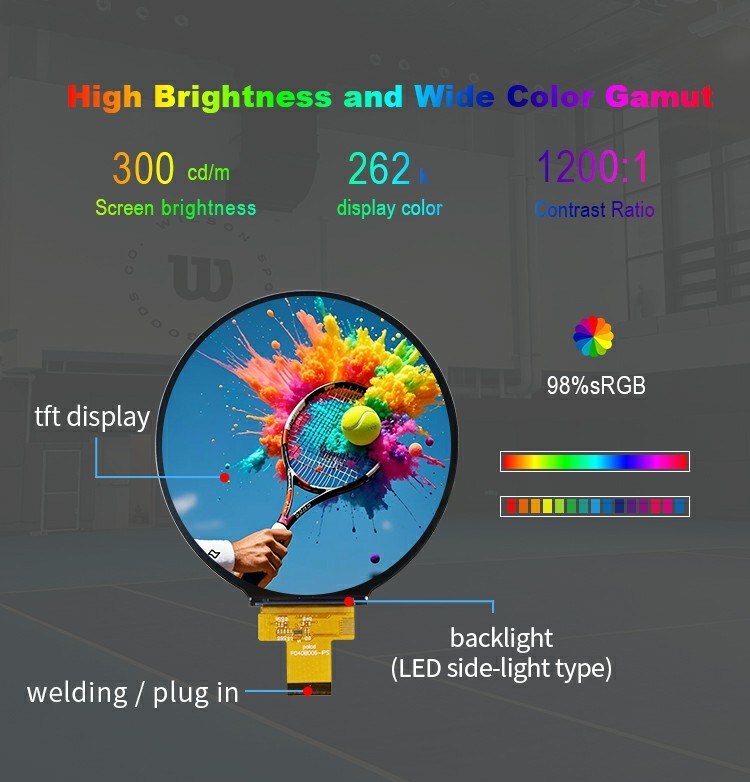

This TFT LCD module features a high-resolution color display, providing crisp and vibrant visuals with excellent image quality.

The round form factor of this LCD makes it particularly suitable for applications that require a circular display, such as smartwatches, fitness trackers, digital gauges, and other wearable devices. Its compact size and lightweight design make it easy to integrate into small electronic devices without compromising on visual performance.

The module supports a wide viewing angle, ensuring that the displayed content remains clear and readable from various perspectives.

Polcd High Brightness 4 Inch 720x720 ST7703 Drive MIPI Interface LCM Type IPS Round TFT LCD Display 0
