Name: Polcd Custom 2.4 Inch Lcd Capacitive Touch Screen Display Panel 240*320 SPI Interface Tft Screen Module
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P024C128-CTP
Availability: InStock

Rumah > Produk > Modul LCD TFT >

Polcd Custom 2.4 Inch Lcd Capacitive Touch Screen Display Panel 240*320 SPI Interface Tft Screen Module

2.4 inch TFT LCD touch screen

SPI interface LCD display panel

capacitive touch screen module

Tempat asal:

Shenzhen, Cina

Nama merek:

Polcd

Sertifikasi:

RoHS, ISO9001

Nomor model:

P024C128-CTP

Hubungi kami

Permintaan Penawaran

Rincian Produk

Resolusi:

240x320

Antarmuka:

SPI 4W

IC pengemudi:

ST7789V

Kecerahan (CD/m²):

260 nit

Sudut Pandang:

12 jam 0

Area tampilan:

36,72(T)x48,96(V) mm

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Harga

Please contact us for latest price

Kemasan rincian

Ukuran FCL: 40*30*20cm / Contoh Kemasan: 20*18*13cm

Waktu pengiriman

1-7 hari kerja

Syarat-syarat pembayaran

T/T, L/C, Kartu Kredit, PayPal, D/A, D/P, Western Union, MoneyGram

Menyediakan kemampuan

40.000 pcs per hari

Produk-produk terkait

video

Polcd 2.4 Inci 240x320 ST7789V Antarmuka Mcu Sudut Pandang Penuh IPS 2.4" Modul Lcd TFT

Dapatkan Harga Terbaik

video

Polcd 2.4 Inch Touch Screen Module ST7789V IC 240x320 Resolusi 2.4 " TFT LCD Display

Dapatkan Harga Terbaik

video

Panel Tampilan Layar Sentuh Kapasitif LCD 2.4 Inci Kustom Polcd 240*320 Antarmuka MCU Modul Layar TFT

Dapatkan Harga Terbaik

video

Polcd Custom 2.4 Inch Lcd Capacitive Touch Screen Display Panel 240*320 SPI Interface Tft Screen Module

Dapatkan Harga Terbaik

Hubungi kami

00-86-13714394335

anna@polcd.com

86-755-21011746

Hubungi sekarang

Deskripsi Produk

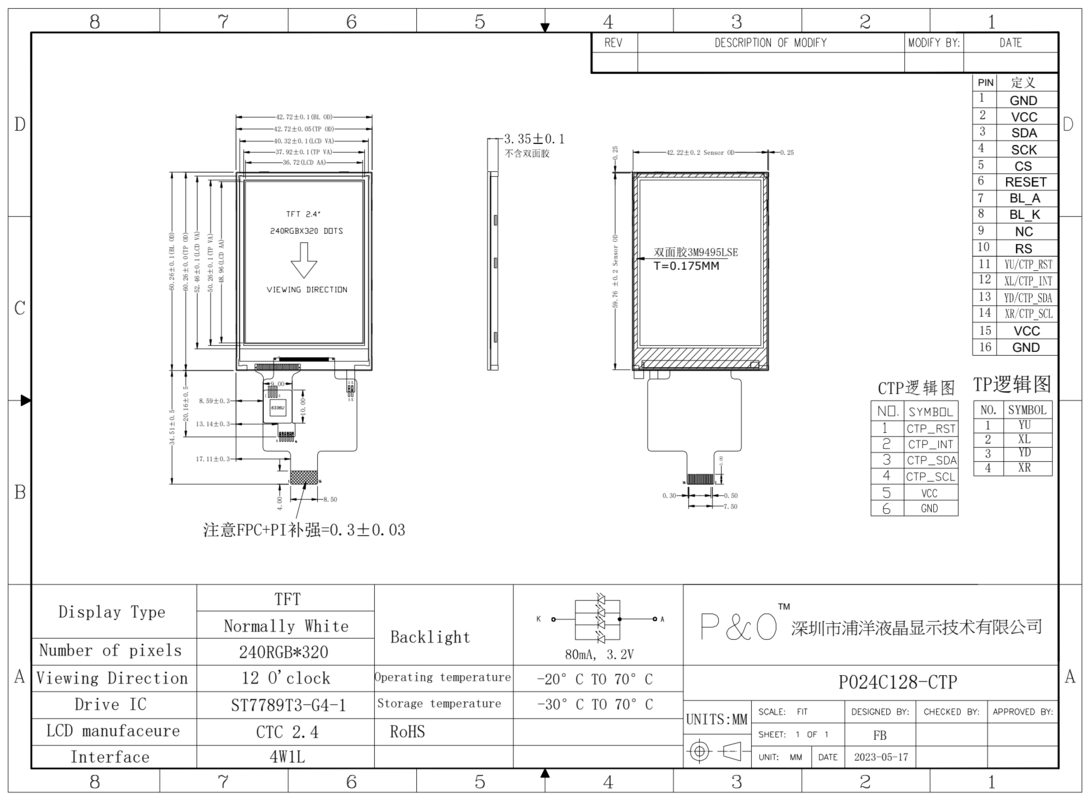

Parameter:

Model	P024C128-CTP
Screen Size	2.4 inch
Number of Pixel	240RGB(H)x320(V)
Display area	36.72(H)x48.96(V)mm
Pixel pitch	51(H)x153(V)um
Pins	16 pins
Outline Dimension	42.72x60.26x3.35mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally White
Viewing Direction(eye)	12 0'CLOCK
Display Color	262K
Luminance(cd/m2)	260 nit
Contrast Ratio	250:1
Interface	4W SPI
Back-light	LED Side-light type
Drive IC	ST7789V
CTP IC	FT6336U
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

Advantages

1.High-quality display: offer high-quality display performance with a resolution of up to 240x320 pixels, providing clear and sharp images and videos.

2.Wide viewing angle: TFT LCD technology typically has a wide viewing angle, allowing for clear viewing from different angles without distortion or color shift.

3.Color display: can display up to 262,144 colors, providing accurate color representation and making it ideal for displaying images and videos.

4.Touch screen support: support capacitive touch screen input, allowing users to select, slide, and zoom with their fingers.

5.Low power consumption: it has low power consumption, which is important for devices that run on battery power.

6.Durability: TFT LCD modules are durable and can withstand shock and vibration, making them suitable for use in various applications, including handheld devices, automotive displays, and medical equipment.

7.Customization: can be customized to meet specific application requirements, including different sizes, resolutions, and features.

Polcd Custom 2.4 Inch Lcd Capacitive Touch Screen Display Panel 240*320 SPI Interface Tft Screen Module 0
