Name: Polcd Mini 2.4 Inch IPS TFT LCD Display Module 40 pin Small Size LCD Screen Panel 240x320
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P024B040-IPS
Availability: InStock

Rumah > Produk > Modul LCD TFT >

Polcd Mini 2.4 Inch IPS TFT LCD Display Module 40 pin Small Size LCD Screen Panel 240x320

Tempat asal:

Shenzhen, Cina

Nama merek:

Polcd

Sertifikasi:

RoHS, ISO9001

Nomor model:

P024B040-IPS

Hubungi kami

Permintaan Penawaran

Rincian Produk

Resolusi:

240x320

Antarmuka:

MCU 8/16BIT

IC pengemudi:

ST7789V

Kecerahan (CD/m²):

450 nit

Sudut pandang:

IPS Semua Sudut Pandang

Area tampilan:

36,72(T)x48,96(V) mm

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Harga

Please contact us for latest price

Kemasan rincian

Ukuran FCL: 40*30*20cm / Contoh Kemasan: 20*18*13cm

Waktu pengiriman

1-7 hari kerja

Syarat-syarat pembayaran

T/T, L/C, Kartu Kredit, PayPal, D/A, D/P, Western Union, MoneyGram

Menyediakan kemampuan

40.000 pcs per hari

Produk-produk terkait

video

Polcd 2.4 Inch 240x320 ST7789V Mcu Interface Full Viewing Angle IPS 2.4" Tft Lcd Module

Dapatkan Harga Terbaik

video

Polcd 2.4 Inch Touch Screen Module ST7789V IC 240x320 Resolution 2.4" TFT LCD Display

Dapatkan Harga Terbaik

video

Polcd Custom 2.4 Inch Lcd Capacitive Touch Screen Display Panel 240*320 Mcu Interface Tft Screen Module

Dapatkan Harga Terbaik

video

Polcd TFT 2.4 inci Spi interface LCD 240*320 RGB Color Touch Screen ST7789V 16pin 2.4 TFT Display

Dapatkan Harga Terbaik

Hubungi kami

00-86-13714394335

anna@polcd.com

86-755-21011746

Hubungi sekarang

Deskripsi Produk

Description of 2.4 inch TFT LCD :

2.4 inch TFT LCDs are commonly used in a variety of electronic devices, including handheld gaming devices, automotive displays, industrial controllers, medical devices, and smart home devices. They typically have low power consumption, wide viewing angles, and can be customized to meet specific application requirements, including touch screen support and different backlight options.

Parameter:

Item	Specification
Model	P024B040-IPS
Screen Size	2.4 inch
Number of Pixel	240RGB(H)x320(V)
Display area	36.72(H)x48.96(V)mm
Pixel pitch	0.153(H)x0.153(V)mm
Pins	40 pins

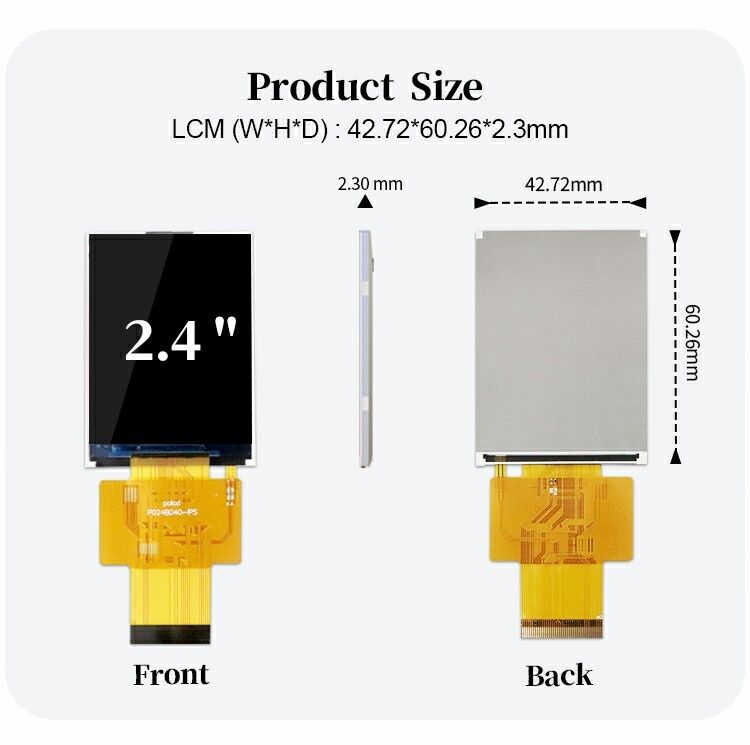

Outline Dimension	42.72x60.26x2.30mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black

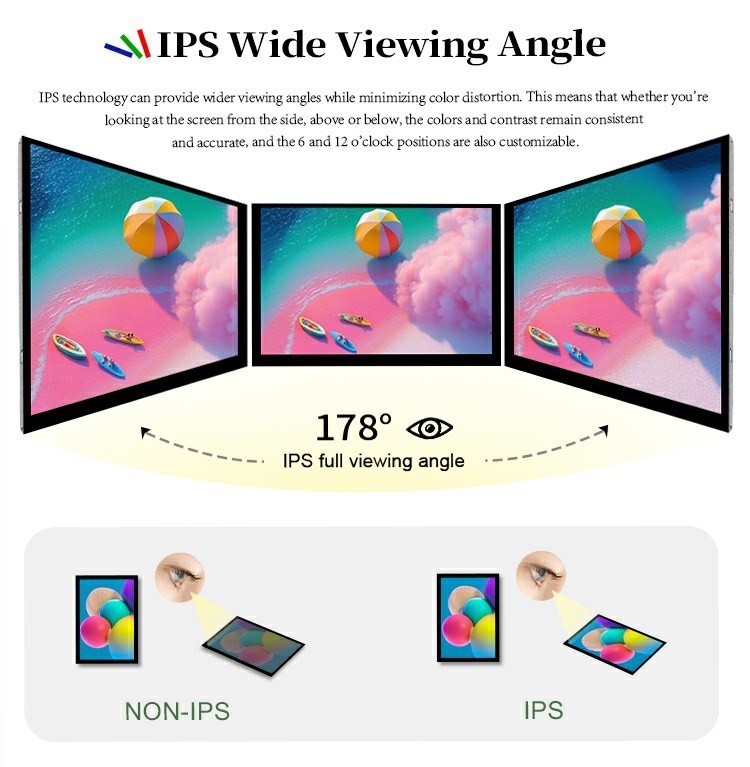

Viewing Direction(eye)	ALL
Gray inversion direction	--
Display Color	262K
Luminance(cd/m2)	450 nit
Contrast Ratio	1200:1
Surface treatment	--
Interface	MCU 8/16BIT
Back-light	LED Side-light type
Drive IC	ST7789V
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

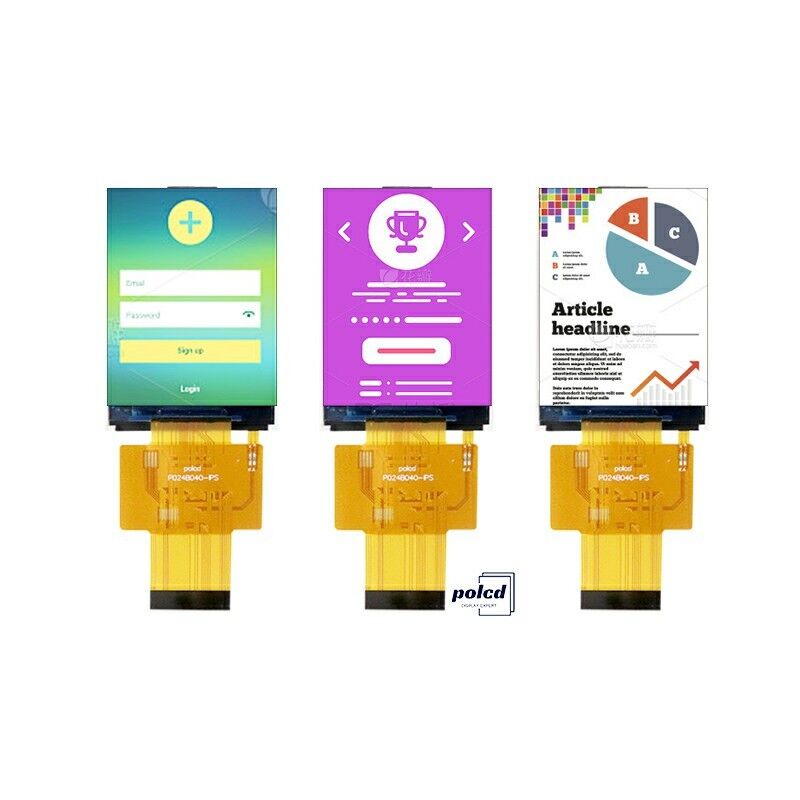

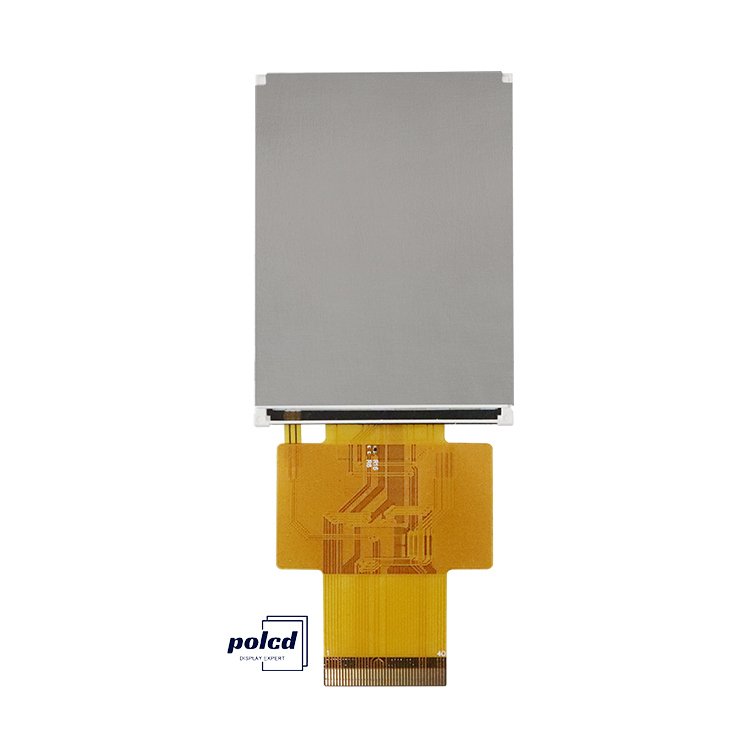

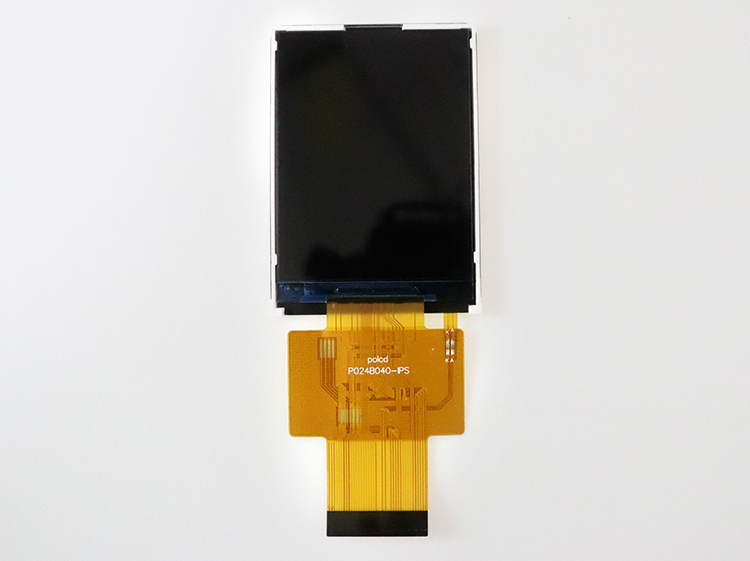

Polcd Mini 2.4 Inch IPS TFT LCD Display Module 40 pin Small Size LCD Screen Panel 240x320 0

Polcd Mini 2.4 Inch IPS TFT LCD Display Module 40 pin Small Size LCD Screen Panel 240x320 1
